Arterial Line Waveform Explained for UK Student Nurses: Real-Time Blood Pressure Made Simple

🧠 What’s an ART Line?

It’s a tiny straw placed into an artery (usually the wrist) that gives us a beat-by-beat blood pressure reading. No need to squeeze the arm with a cuff — this line is always watching 👀.

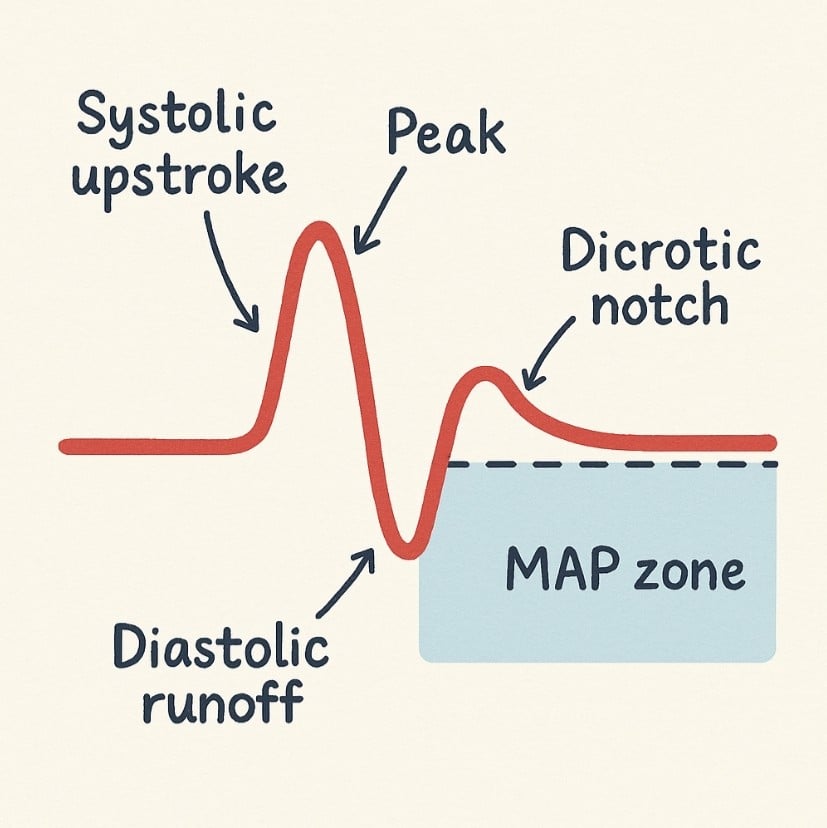

📈 The Waveform — Your Patient’s Pulse in Real Time



🔺 Systolic Upstroke: The big climb up.

What’s happening? The heart’s doing its big squeeze (aka systole), shooting blood into the arteries like a mini geyser. 💥💓

It’s saying: “I’m working hard, look at this pressure!”

🏔️ Peak (Systolic BP): The top of the hill.

This is your systolic blood pressure — the highest pressure when the heart’s flexing like a gym bro. 🏋️♂️

🪝 Dicrotic Notch: A cute little dip.

This means the aortic valve just shut — like a door slamming after the heart’s thrown out the blood. 🫳🚪

If this notch disappears? We might have a valve problem… or just a dodgy line.

⬇️ Diastolic Runoff: The gentle slide back down.

The heart’s chilling (diastole), blood is flowing out to the body, and pressure falls.

This is your diastolic BP — the lowest point on the wave.

📦 MAP (Mean Arterial Pressure): The shaded area under the curve.

This is the average pressure during the cardiac cycle — basically how well organs are getting perfused.

Target MAP: 65 mmHg or higher. Below that? Your kidneys start throwing a tantrum. 😤🫁🧠



⚠️ When the Line Acts Up: Weird Waveform What it Looks Like What it Means

Flatline Like someone fell asleep Air bubble, clot, kink — wake it up!

Spiky mess Like a mountain range Could be too stiff (underdamped) or too excited

Sluggish blob No peaks, no drama Overdamped, maybe a clot or air slowing it down



🛠️ How to Keep It Happy:

• Keep it level with the heart (phlebostatic axis).
• Make sure the flush bag’s pumped up to 300 mmHg.
• Zero it every shift or after messing with the bed.



🧑🎓 Student Tip:

If you’re not sure what the waveform’s saying, trust your eyes — you’ll learn to spot what “normal” looks like. Ask your mentor, and don’t be afraid to say, “This waveform looks… weird. Is it okay?”

Disclaimer:This resource is designed for educational purposes for UK student nurses and healthcare professionals. While we strive for clinical accuracy, it does not constitute medical advice. Always refer to your specific Trust’s local policies, NICE guidelines and the NMC Code in clinical practice. Clinical scenarios can change rapidly; when in doubt, escalate to your mentor or senior clinician.
