Injection Routes: Where Is the Medicine Actually Going?

There is a moment most student nurses have, usually during skills teaching or a medication round, when someone says:

“This one’s subcut.”

And your brain quietly replies:

Cool. But where is that actually going?

Not in a drop-out-of-university way. Just in that slightly sweaty I should probably understand this way.

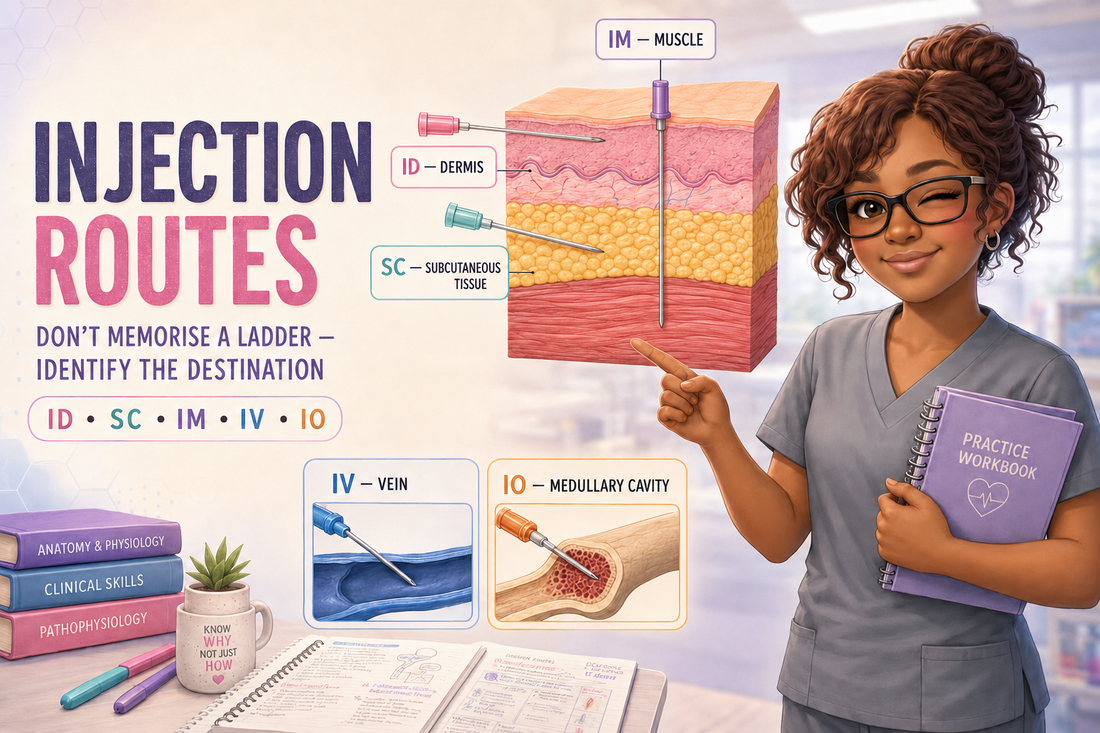

Injection routes become much easier once you stop seeing them as a list of angles and start thinking about the anatomical destination.

Skin, subcutaneous tissue, muscle and the circulation are different targets. The prescribed route, medicine, device, injection site and patient’s anatomy all influence how the medicine should be administered.

That is why this is not something to “just wing.”

Before We Start: Route Is Not Just About Depth

Intradermal, subcutaneous and intramuscular injections target different tissue layers.

Intravenous and intraosseous access are different. They provide access to the circulation and should not be placed at the end of a simple “shallow to deep” injection scale.

The safest memory line is:

ID = dermis
SC = subcutaneous tissue
IM = muscle
IV and IO = access to the circulation

Intradermal: Into the Dermis

An intradermal (ID) injection is placed within the dermis, just below the outer surface of the skin.

Because the target is shallow, the needle is commonly introduced bevel-up at a very small angle, often around 5–15 degrees. The exact technique must follow the relevant procedure and product guidance.

For a Mantoux tuberculin skin test, the standard volume is 0.1 mL. However, 0.1 mL should not be presented as the universal volume for every intradermal procedure.

Correct placement usually produces a small raised area called a wheal or bleb. When performing a test that requires one, an absent or inadequate wheal may indicate that the injection was too deep or that the test needs to be assessed according to its protocol.

Intradermal administration may be used for procedures such as tuberculin skin testing and some specialist allergy tests. Certain vaccination programmes may also use intradermal administration under specific national guidance.

This is a precise route with a very small margin for depth, not the moment for a confident little jab and hope.

Subcutaneous: Into the Tissue Beneath the Skin

A subcutaneous (SC) injection is delivered into the tissue between the skin and muscle.

This tissue has a different blood supply from muscle, so many subcutaneous medicines are absorbed more gradually. However, absorption is not determined by the route alone. It can also be affected by the medicine, formulation, injection site, blood flow, temperature and condition of the tissue.

Common examples include insulin and some low-molecular-weight heparins.

You may be taught either a 45-degree or 90-degree angle. Both can be appropriate, depending on factors such as:

• the needle and delivery device
• the medicine’s product instructions
• the selected site
• the person’s subcutaneous tissue
• local clinical guidance

Modern short insulin pen needles are commonly inserted at 90 degrees. A lifted skinfold may be needed for some children or very slim adults, but pinching the skin is not automatically required for every subcutaneous injection.

Different medicines also have their own instructions. The technique used for insulin should not automatically be copied when administering low-molecular-weight heparin or another subcutaneous medicine.

Always check the prescription, product information and local procedure.

Intramuscular: Into Muscle Tissue

An intramuscular (IM) injection is delivered into muscle.

Muscle generally has a richer blood supply than subcutaneous tissue, but that does not mean every intramuscular medicine acts rapidly. Some medicines are deliberately formulated as slow-release or depot injections.

The needle is normally inserted at 90 degrees to the skin. The correct site and needle length depend on the person’s age, body composition, muscle mass, the medicine and the volume being administered.

Common intramuscular sites include the deltoid and anterolateral thigh. The ventrogluteal site may also be used by appropriately trained practitioners.

Potential examples include certain vaccines, hydroxocobalamin and long-acting injectable medicines. The route must always be checked because medicines can differ in their licensed administration instructions.

What About Volume?

There is no single maximum intramuscular volume that is appropriate for every patient and every site.

The safe volume depends on the muscle selected, the patient’s anatomy, age, medicine and local guidance. If a volume looks unusual for the site, pause and check rather than relying on a memorised number.

Should You Aspirate?

Aspiration guidance depends on the medicine and procedure.

UK immunisation guidance does not recommend aspiration when vaccines are administered into the recommended sites because large blood vessels are not present there. Other intramuscular medicines may be covered by different product or local instructions.

Do not apply one rule to every intramuscular injection.

Intravenous: Direct Access to the Circulation

Intravenous (IV) administration delivers a medicine or fluid into the venous circulation through vascular access such as a peripheral cannula or central venous device.

There is no absorption stage. The medicine reaches the circulation immediately, which is why errors involving IV medicines can cause harm quickly.

Cannulation and IV medicine administration are related but separate skills.

During peripheral cannulation, students may be taught an initial insertion angle somewhere around 10–30 degrees, followed by lowering the cannula when blood flashback and positioning indicate entry into the vein. There is no universal magic angle because veins, devices and techniques vary.

Once a cannula is in place, medicines are not administered according to a needle angle. The practitioner must confirm that the device is appropriate, patent and safe to use and must follow the medicine-specific instructions.

Seeing a cannula does not automatically mean you are authorised to access it.

Intraosseous: Emergency Vascular Access Through Bone

Intraosseous (IO) access places a specialised needle into the medullary cavity of a bone, allowing medicines and fluids to enter the circulation.

It is an emergency vascular-access route, not simply the “deepest injection.”

Current Resuscitation Council UK guidance recommends attempting IV access first during adult cardiac arrest. IO access may be considered when IV access cannot be achieved rapidly, including after two unsuccessful attempts.

In children with circulatory failure, IO access is used as a rescue alternative when IV access fails or is unlikely to be achieved promptly.

Whether a student can insert, access or assist with an IO device depends on their programme, assessed competence, supervision and local policy. Do not assume that all students are either automatically permitted or completely prohibited.

If you encounter an IO device, protect the site, watch for displacement, swelling or leakage and follow the direction of the emergency team.

Specialist Routes

You may also hear terms such as:

• intrathecal
• epidural
• intra-articular
• intraperitoneal
• intra-arterial

These are specialist routes requiring specific training, equipment, authorisation and monitoring. They should not be grouped casually with routine ID, SC and IM injection teaching.

Recognising the name is useful. Performing the procedure is a completely different matter.

A Better Way to Remember the Routes

Instead of:

“Shallow to deep, slow to fast.”

Remember:

ID targets the dermis.
SC targets subcutaneous tissue.
IM targets muscle.
IV and IO provide access to the circulation.

Angles help reach the intended destination, but they are not universal instructions. Absorption speed is also not a simple ranking, it depends on the route, medicine, formulation, site and patient.

What Student Nurses Should Check

Before assisting with or administering an injection, confirm:

• the prescription and legal authority
• the right patient, medicine, dose, route and time
• allergies and relevant clinical risks
• the medicine’s product instructions
• the correct site, device and needle
• consent
• your competence and level of supervision
• documentation and sharps disposal requirements

If the prescribed route, volume, site or technique does not look right, stop and ask.

That is not a lack of confidence. That is safe nursing practice.

Bleepbook Memory Line

Don’t memorise a ladder, identify the destination.

References

Dougherty, L. and Lister, S. (eds). The Royal Marsden Manual of Clinical Nursing Procedures. Wiley-Blackwell.

Nursing and Midwifery Council. The Code: Professional standards of practice and behaviour for nurses, midwives and nursing associates. Available at: NMC

Resuscitation Council UK (2025). Adult Advanced Life Support Guidelines. Available at: Resuscitation Council UK

Resuscitation Council UK (2025). Paediatric Life Support Guidelines. Available at: Resuscitation Council UK

UK Health Security Agency. Immunisation procedures: The Green Book, Chapter 4. Available at: GOV.UK
